Interlocking systems

The heart of Tandem Technology is the interlocking system: the Compact Locking System (CLS).

It takes over the reliable alternating closing and opening of two parting surfaces within the tool.

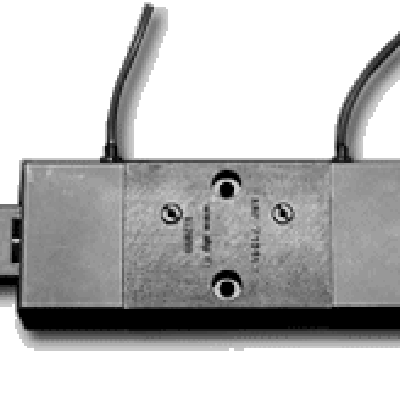

The interlocking mechanism is moved by a hydraulic cylinder. With the CLS1-2 and 1-4 versions pneumatic versions can also be used.

The modified software for each injection mould machine is controlled via a limit switch. A version of the Compact Locking Systems is available for nearly all tool sizes.

The performance and advantages of the Compact Locking System (CLS)

  • Full integration in the tool is possible
  • Clamping sizes like with a standard tool
  • Modular system with numerous variants
  • Selection of different sizes and versions for all possible* types of tool and sizes.
  • Low service level
  • The same set-up time as with standard tools

The different versions of the Compact Locking Systems (CLS):

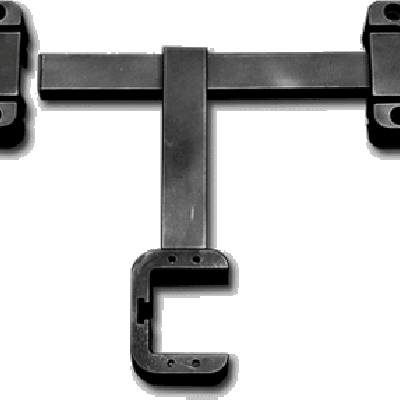

  • CLS 1-2 smaller design, two locking systems, u-shaped locking rod

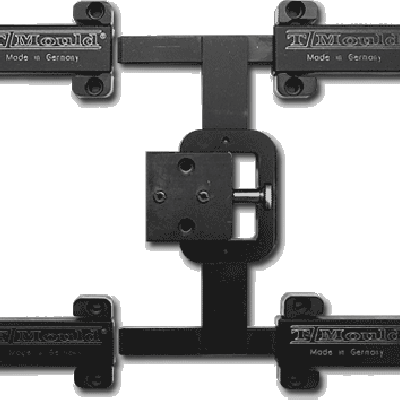

  • CLS 1-4 smaller design, four locking systems, u-shaped locking rod

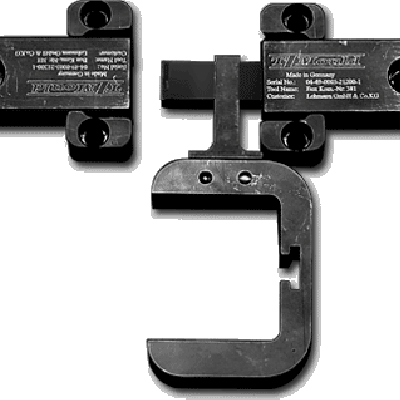

  • CLS 2-2 larger design, two locking systems, u-shaped locking rod

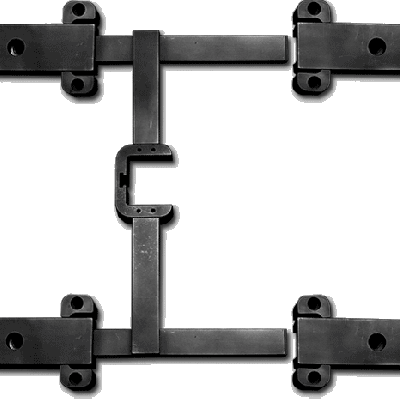

  • CLS 2-4 larger design, four locking systems, u-shaped locking rod
  • CLS 3 / CLS 4 larger design, CLS 3-2: two locking systems, CLS 3-4: four locking systems, etc., straight locking rod, The CLS 3 and CLS 4 versions are suitable for centre plates with sufficient dimensions of min 250 mm and min 400 mm respectively.
